Spyraflo BFM-375-B Self-Aligning, SAE-840 Oil Impregnated Bronze Bearing With 2-Bolt Hole, 3/8" Inner-Diameter Steel Flange

The BFM-375-B is an economic solution combining the Spyraflo Self-Aligning, SAE-840 Bronze bearing with a 2-Bolt Hole Steel Flange. The final assembly offers design engineers a Low-Cost, Low-Profile, Flange-Mounted bearing. Oil impregnated bronze bearings are an economic solution for medium load / medium speed applications. Manufactured to SAE-840 specifications; containing 25% oil within the porous bronze spherical insert ensuring long, maintenance free, bearing life. Oil is distributed to the mounting surface by a hydrodynamic action, ensuring a protective film of lubricating oil is maintained between the bearing and mounting shaft. The Self-Aligning bronze bearing is very securely self-clinched into the Steel Flange. Spyraflo Flange-Mounts are an ideal choice for applications that require a removable/replaceable bearing as opposed to a permanently self-clinched installation. The profile and performance of Spyraflo Flange-Mounts make them a very cost effective alternative to traditional Flange-Mounted bearing mounting challenges. Mail Handling Machines and Systems, Product Handling Systems and Bus Door Assemblies are among the wide cross-section of applications benefiting from the productivity and performance gains of Spyraflo Flange-Mounts.

Spyraflo BFM-375-B Self-Aligning, SAE-840 Oil Impregnated Bronze Bearing With 2-Bolt Hole, 3/8" Inner-Diameter Steel Flange Review

Spyraflo BFM-375-B Self-Aligning, SAE-840 Oil Impregnated Bronze Bearing With 2-Bolt Hole, 3/8" Inner-Diameter Steel Flange Feature

• ± 5° Self-Alignment accommodating machining and assembly mis-alignment
• Lightweight, approximately 50% of that of cast-iron
• Low Cost
• Maintenance Free, in medium load, rotational or oscillatory applications
• Minimum footprint

Check price now

20mm Mounted Bearing UCF204 + Square Flanged Cast Housing

Unit No. Shaft No. Diemens(mm) Bolt size Bearing No. Housing No. Mass(kg) d L J A2 A1 A E N S A4 (in.) (mm) UCF204 20 86 64 15 11 25.5 33.3 11.5 12.7 37.5 M10 UC204 F204 0.64

20mm Mounted Bearing UCF204 + Square Flanged Cast Housing Review

Check price now

Spyraflo HF1-250-B Self-Aligning, SAE-840 Oil Impregnated Bronze Bearing With Aluminum 2-Bolt Hole, 1/4" Inner-Diameter Housing-Flange

The HF1-250-B combines the Spyraflo Self-Aligning, SAE-840 Bronze bearing with their sintered aluminum 2-Bolt Hole Housing-Flange. The final assembly offers design engineers a Low-Profile, Flange-Mounted bearing that is lightweight, has clean lines, dimensional consistency and is corrosion resistant. Oil impregnated bronze bearings are an economic solution for medium load / medium speed applications. Manufactured to SAE-840 specifications; containing 25% oil within the porous bronze spherical insert ensuring long, maintenance free, bearing life. Oil is distributed to the mounting surface by a hydrodynamic action, ensuring a protective film of lubricating oil is maintained between the bearing and mounting shaft. The Self-Aligning bronze bearing is very securely mounted into the Aluminum Housing-Flange. Spyraflo Housing-Flange are often able to replace more expensive, larger and heavier cast-iron ball bearing assemblies. The profile and performance of Spyraflo Housing-Flanges make them a very cost effective alternative to traditional Flange-Mounted bearing mounting challenges. Military Vehicles, Playground Equipment, Conveyors, Packaging Machines, Lawn Care Equipment, Loading Platforms and Radar Equipment are among the wide cross-section of applications benefiting from productivity and performance gains from Spyraflo Housing-Flanges. In addition the Spyraflo Housing Flange range can be used as a drop-in replacement for the Bunting Lube-Align product.

Spyraflo HF1-250-B Self-Aligning, SAE-840 Oil Impregnated Bronze Bearing With Aluminum 2-Bolt Hole, 1/4" Inner-Diameter Housing-Flange Review

Spyraflo HF1-250-B Self-Aligning, SAE-840 Oil Impregnated Bronze Bearing With Aluminum 2-Bolt Hole, 1/4" Inner-Diameter Housing-Flange Feature

• ± 5° Self-Alignment accommodating machining and assembly mis-alignment
• Lightweight, approximately 50% of that of cast-iron or steel
• Low Profile
• Maintenance Free, in medium load, rotational or oscillatory applications
• Corrosion resistant

Check price now

SBPF202-10 5/8 Pressed Steel Bearing Unit 3-Bolt Flanges Mounted

SBPF202-10 Pressed Steel Housing Unit 3-Bolt Flanges SBPF202-10 Pressed Steel Housing Unit, bearing is 3-Bolt Flanges and Shaft Diameter is 5/8" Inch. * Item: SBPF202-10 Bearing * Type: Pressed Steel Housing Unit * Shaft Diameter: 5/8" Inch * Bolt Size: 1/4" Inch * Bearing No: SB202-10 * Housing No: PFL203 * Basic Load (Cr): 9.55 KN * Basic Load (Cor): 4.8 KN * Quantity: One bearing Dimensions (Inches) a p t b s F Bi n 3-7/32" 2-33/64" 0.079" 5/8" 9/32" 1-15/16" 0.866" 0.236"

SBPF202-10 5/8 Pressed Steel Bearing Unit 3-Bolt Flanges Mounted Review

SBPF202-10 5/8 Pressed Steel Bearing Unit 3-Bolt Flanges Mounted Feature

• Item: SBPF202-10 Bearing
• Type: Pressed Steel Housing Unit
• Shaft Diameter: 5/8" Inch
• Bolt Size: 1/4" Inch
• Bearing No: SB202-10

Check price now

1/2 Bearing UCF201-8 + Square Flanged Cast Housing Mounted Bearings

UCF201-8 Four Bolt Flange Unit Set Screw Type 1/2" inch Inner Diameter UCF201-8 Four Bolt Flange Unit, bearing is Set Screw Type, Inner Diameter is 1/2" inch * Item: UCF201-8 Ball Bearing * Type: Flange Mounted Bearing * Bolt Size: 3/8" inch * Shaft Diameter: 1/2" inch * Basic Load (Cr): 12.8 KN * Basic Load (Cor): 6.65 KN * Bearing No: UC201-8 * Housing No: F204 * Quantity: One Bearing Dimensions (inches) a e i g l s z Bi n 3-3/8" 2-33/64" 19/32" 15/32" 1" 15/32" 1-5/16" 1-7/32" 1/2"

1/2 Bearing UCF201-8 + Square Flanged Cast Housing Mounted Bearings Review

1/2 Bearing UCF201-8 + Square Flanged Cast Housing Mounted Bearings Feature

• Item: UCF201-8 Ball Bearing
• Type: Flange Mounted Bearing
• Bolt Size: 3/8" inch
• Shaft Diameter: 1/2" inch
• Basic Load (Cr): 12.8 KN

Check price now

Spyraflo PB0-SRW3ZZ 3/16" Inner Diameter Mounted Miniature Precision Ball Bearing Extended Inner Race, In An Aluminum Housing

The Spyraflo PB0-SRW3ZZ is an efficient and cost effective solution to the challenge of mounting miniature ball bearings in a wide variety of applications. The unique Spyraflo assembly fills the previous void in the market place where, up until now, mounted ball bearings have only been available in shaft diameters greater than 1/2 inch. The assembly consists of a precision Japanese stainless steel ABEC 3 extended inner race ball bearing mounted in a precision-machined, sintered aluminum pillow-block housing. The aluminum body and stainless steel bearing combination, together with the double shields, give the bearing a high level of corrosion resistance. In the past, when considering the use of miniature bearings for an assembly, one of the critical design elements was how, precisely, the bearings could be mounted. Typically, the mount had to be precision machined, particularly when using high-performance miniature bearings. previously this would have entailed an engineer designing, and then having the critical machining and bearing assembly carried out. The Spyraflo bearing eliminates this task-effectively and economically-just screw in place. The PB0-SRW3ZZ is the ideal bearing choice for medical, pharmaceutical, scientific and other precision-oriented fields. They are also in wide use in the expert model making and hobbyist world.

Spyraflo PB0-SRW3ZZ 3/16" Inner Diameter Mounted Miniature Precision Ball Bearing Extended Inner Race, In An Aluminum Housing Review

Spyraflo PB0-SRW3ZZ 3/16" Inner Diameter Mounted Miniature Precision Ball Bearing Extended Inner Race, In An Aluminum Housing Feature

• Quick and easy to install
• Savings on design, machining and assembly
• Ideal for Medical, Scientific and Pharmaceutical applications
• Precision ball bearing capability for hobbyists
• Stainless steel, double shield ball bearing, aluminum housing, high level of corrosion resistance

Check price now

25mm Mounted Bearing UCFL205 + 2 Bolts Flanged Cast Housing

Unit No Shaft Dia Dimensions(mm) Bolt Size Bearing No. Housing No. Mass(kg) d H L L A2 A1 A E N S A4 (in.) (mm) N UCFL205 25 130 99 68 16 13 27 35.7 11.5 14.3 40 M10 UC205 FL205 0.60

25mm Mounted Bearing UCFL205 + 2 Bolts Flanged Cast Housing Review

Check price now

FYH Bearing UCP207-21 1 5/16 Pillow Block Mounted Bearings

FYH Bearings Pillow Block Bearing Cylindrical bore (with set screws) 1 5/16" Inner Diameter Bearing This is the most common type of mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Mounted units with cast steel housings are also available in this series, and are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately. * d = 1 5/16" * H = 1 7/8" * L = 6 9/16" * A = 1 7/8" * J = 5" * N = 21/32" * N1 = 13/16" * H1 = 5/8" * H2 = 3 21/32" * L1= 2" * B = 1.689" * S = 0.689" * Bolt Size = 1/2" * Unit no. = UCP207-21 * Bearing = UC207-21 * Basic Load kN (Cr)= 25.7 * Basic Load kN (Cor)= 15.4

FYH Bearing UCP207-21 1 5/16 Pillow Block Mounted Bearings Review

FYH Bearing UCP207-21 1 5/16 Pillow Block Mounted Bearings Feature

• d = 1 5/16"
• H = 1 7/8"
• L = 6 9/16"
• A = 1 7/8"
• J = 5"

Check price now

Dayton 3FGA4 Mounted Ball Bearing, Pillow, 1 In Bore

Pillow Mounted Ball Bearing, Light Duty, No of Bolts 2, Bore Dia 1 In, Fits Shaft Dia 1 In, Mounting Surface to Shaft Center 1 7/16 In, Mounting Hole Center 4 1/8 In, Bolt Hole Size 1/2 In, Height 2.78 In, Width 1.50 In, Length 5.50 In, Dynamic Load Capacity 3146 Lb, Static Load Capacity 1771 Lb, Temp Range -25 to 250 F, Dual Set Screw Locking Type, Mounted Ball Bearing Type, Ball Bearing Insert, 52100 Chrome Steel Material, Cast Iron Housing Material

Dayton 3FGA4 Mounted Ball Bearing, Pillow, 1 In Bore Review

Check price now

NBT-1 1/2 CS Flange Ball Transfer Unit 1-1/2 Main Ball USA made Mounted Bearings

NBT-1 1/2 CS Flange Ball Transfer Unit 1-1/2 Main Ball USA made Mounted Bearings Review

See more picture

NBT-1 1/2 CS Flange Ball Transfer Unit 1-1/2 Main Ball USA made Mounted Bearings Feature

• Item: NBT-1 1/2 CS Bearing
• Type: Ball Transfer unit
• Ball Material: Nylon
• Housing Material: Carbon Steel
• Load Capacity: 125 lbs

NBT-1 1/2 CS Flange Mounted Ball Transfer Unit 1-1/2" Main Ball Proudly made in the USA NBT-1 1/2 CS Flange Mounted Ball Transfer Unit, Main Ball is 1" Inch, 1-1/2" Main ball rotates on (90) 3/16" support balls, NBT-1 1/2 CS is a heavy duty ball transfer unit, capable of supporting as many as 125 pounds (per unit). * Item: NBT-1 1/2 CS Bearing * Type: Ball Transfer unit * Ball Material: Nylon * Housing Material: Carbon Steel * Load Capacity: 125 lbs * Quantity: One Bearing * Brand: Hudson Bearings * Made in the USA Features * Four-Hole, Steel and Flange-mounted * features a 1 and 1/2 inch ball bearing resting on 90 individual support bearings and is ideal for most industrial transfer applications. NBT-1 1/2 CS flange mounted bearing is useful for a number of different applications where traditional wheel casters are used * Ball support cup is hardened and plated * Protective cover assures low torque and longevity Dimensions (Inches) d D N M F G H 2-7/16" 3" 2-7/16" 3" 1-13/16" 2-19/32" 1-13/32"

Check price now

30mm Mounted Bearing UCF206 + Square Flanged Cast Housing

30mm Mounted Bearing UCF206 + Square Flanged Cast Housing Review

See more picture

Unit No. Shaft No. Diemens(mm) Bolt size Bearing No. Housing No. Mass(kg) d L J A2 A1 A E N S A4 (in.) (mm) UCF206 30 108 83 18 13 31 40.2 11.5 15.9 44 M10 UC206 F206 1.07

Check price now

FYH Bearing UCP210 50mm Pillow Block Mounted Bearings

FYH Bearing UCP210 50mm Pillow Block Mounted Bearings Review

See more picture

FYH Bearing UCP210 50mm Pillow Block Mounted Bearings Feature

• d = 50mm
• H = 57.2mm
• L = 206mm
• A = 60mm
• J = 159mm

FYH Bearings Pillow Block Bearing Cylindrical bore (with set screws) 50mm Inner Diameter Bearing This is the most common type of mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Mounted units with cast steel housings are also available in this series, and are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately. * d = 50mm * H = 57.2mm * L = 206mm * A = 60mm * J = 159mm * N = 20mm * N1 = 22mm * H1 = 19mm * H2 = 113mm * L1= 63mm * B1 = (B1)mm * S = 19mm * Bolt Size = M16 * Unit no. = UCP210 * Bearing = UC210 * Basic Load kN (Cr)= 35.1 * Basic Load kN (Cor)= 23.3

Check price now

FYH Bearing UCP212 60mm Pillow Block Mounted Bearings

FYH Bearing UCP212 60mm Pillow Block Mounted Bearings Review

See more picture

FYH Bearing UCP212 60mm Pillow Block Mounted Bearings Feature

• d = 60mm
• H = 69.8mm
• L = 241mm
• A = 70mm
• J = 184mm

FYH Bearings Pillow Block Bearing Cylindrical bore (with set screws) 60mm Inner Diameter Bearing This is the most common type of mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Mounted units with cast steel housings are also available in this series, and are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately. * d = 60mm * H = 69.8mm * L = 241mm * A = 70mm * J = 184mm * N = 20mm * N1 = 25mm * H1 = 22mm * H2 = 138mm * L1= 76mm * B1 = (B1)mm * S = 25.4mm * Bolt Size = M16 * Unit no. = UCP212 * Bearing = UC212 * Basic Load kN (Cr)= 52.4 * Basic Load kN (Cor)= 36.2

Check price now

3/4 Mounted Bearing UCFL204-12 + 2 Bolts Flanged Cast Housing

3/4 Mounted Bearing UCFL204-12 + 2 Bolts Flanged Cast Housing Review

See more picture

Unit No Shaft Dia Dimensions(mm) Bolt Size Bearing No. Housing No. Mass(kg) d H L L A2 A1 A E N S A4 (in.) (mm) N UCFL204-12 3/4 113 90 60 15 11 25.5 33.3 11.5 12.7 37.5 M10 UC204-12 FL204 0.51

Check price now

FYH Bearing UCP206-20 1 1/4 Pillow Block Mounted Bearings

FYH Bearing UCP206-20 1 1/4 Pillow Block Mounted Bearings Review

See more picture

FYH Bearing UCP206-20 1 1/4 Pillow Block Mounted Bearings Feature

• d = 1 1/4"
• H = 1 11/16"
• L = 6 1/2"
• A = 1 7/8"
• J = 4 3/4"

FYH Bearings Pillow Block Bearing Cylindrical bore (with set screws) 1 1/4" Inner Diameter Bearing This is the most common type of mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Mounted units with cast steel housings are also available in this series, and are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately. * d = 1 1/4" * H = 1 11/16" * L = 6 1/2" * A = 1 7/8" * J = 4 3/4" * N = 21/32" * N1 = 13/16" * H1 = 19/32" * H2 = 3 5/16" * L1= 2 3/32" * B = 1.5" * S = 0.626" * Bolt Size = 1/2" * Unit no. = UCP206-20 * Bearing = UC206-20 * Basic Load kN (Cr)= 19.5 * Basic Load kN (Cor)= 11.3

Check price now

Spyraflo PB0-SR1810ZZS 5/16" Inner Diameter, Mounted Miniature Precision Ball Bearing In An Aluminum Housing

Spyraflo PB0-SR1810ZZS 5/16" Inner Diameter, Mounted Miniature Precision Ball Bearing In An Aluminum Housing Review

See more picture

Spyraflo PB0-SR1810ZZS 5/16" Inner Diameter, Mounted Miniature Precision Ball Bearing In An Aluminum Housing Feature

• Quick and easy to install
• Savings on design, machining and assembly
• Ideal for Medical, Scientific and Pharmaceutical applications
• Precision ball bearing capability for hobbyists
• Stainless steel, double shield ball bearing, aluminum housing, high level of corrosion resistance

The Spyraflo PB0-SR1810ZZS is an efficient and cost effective solution to the challenge of mounting miniature ball bearings in a wide variety of applications. The unique Spyraflo assembly fills the previous void in the market place where, up until now, mounted ball bearings have only been available in shaft diameters greater than 1/2 inch. The assembly consists of a precision Japanese stainless steel ABEC 3 ball bearing mounted in a precision-machined, sintered aluminum pillow-block housing. The aluminum body and stainless steel bearing combination, together with the double shields, give the bearing a high level of corrosion resistance. In the past, when considering the use of miniature bearings for an assembly, one of the critical design elements was how, precisely, the bearings could be mounted. Typically, the mount had to be precision machined, particularly when using high-performance miniature bearings. previously this would have entailed an engineer designing, and then having the critical machining and bearing assembly carried out. The Spyraflo bearing eliminates this task-effectively and economically-just screw in place. The PB0-SR1810ZZS is the ideal bearing choice for medical, pharmaceutical, scientific and other precision-oriented fields. They are also in wide use in the expert model making and hobbyist world.

Check price now

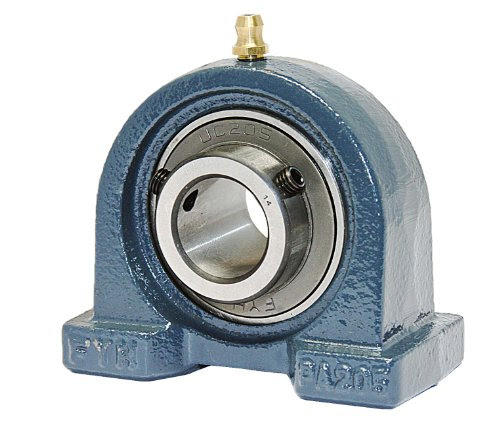

FYH Bearings UCPA205-14 7/8 Pillow Block Mounted Bearing

FYH Bearings UCPA205-14 7/8 Pillow Block Mounted Bearing Review

See more picture

FYH Bearings UCPA205-14 7/8 Pillow Block Mounted Bearing Feature

• "d = 7/8"""
• "H = 1 7/16"""
• "L = 3 5/16"""
• "A = 1 25/32"""
• "J = 2 13/64"""

"FYH Bearings Pillow Block Bearing Cylindrical bore (with set screws) 7/8"" (.875 inch) Inner Diameter Bearing This pillow type unit is designed to reduce mounting space, and it is installed to machines with the two tapped holes on the bottom of the housing. Applications : Conveyors, areas with limited mounting space. * d = 7/8"" * H = 1 7/16"" * L = 3 5/16"" * A = 1 25/32"" * J = 2 13/64"" * N = M10x1.5"" * H2 = 2 25/32"" * H3 = 1/2"" * L1 = 1 3/16"" * B = 1.343"" * S = .563"" * Basic Load kN (Cr)= 14 * Basic Load kN (Cor)= 7.85 * Bearing No = UC205-14"

Check price now

25mm Mounted Bearing UCF205 + Square Flanged Cast Housing

25mm Mounted Bearing UCF205 + Square Flanged Cast Housing Review

See more picture

Unit No. Shaft No. Diemens(mm) Bolt size Bearing No. Housing No. Mass(kg) d L J A2 A1 A E N S A4 (in.) (mm) UCF205 25 95 70 16 13 27 35.7 11.5 14.3 40 M10 UC205 F205 0.80

Check price now

FYH Bearing UCPA205 25mm Pillow Block Mounted Bearings

FYH Bearing UCPA205 25mm Pillow Block Mounted Bearings Review

See more picture

FYH Bearing UCPA205 25mm Pillow Block Mounted Bearings Feature

• Item: UCPA205 Bearing
• Type: Tapped-base pillow units
• Basic Load (Cr): 14 KN
• Basic Load (Cor): 7.85 KN
• Bearing No: UC205

UCPA205 FYH Bearing Pillow Block Bearing Cylindrical bore (with set screws) 25mm Inner Diameter Bearing This pillow type unit is designed to reduce mounting space, it is installed for machines with the two tapped holes on the bottom of the housing. Applications are Conveyors and areas with limited mounting space * Item: UCPA205 Bearing * Type: Tapped-base pillow units * Basic Load (Cr): 14 KN * Basic Load (Cor): 7.85 KN * Bearing No: UC205 * Quantity: One bearing Dimensions (mm) d H L A J N H2 H3 L1 B S 25 36.5 84 45 56 M10x1.5 71 13 30 34.1 14.3

Check price now

FYH Bearing UCPX11-35 2 3/16 Pillow Block Mounted Bearings

FYH Bearing UCPX11-35 2 3/16 Pillow Block Mounted Bearings Review

See more picture

FYH Bearing UCPX11-35 2 3/16 Pillow Block Mounted Bearings Feature

• Item: UCPX11-35 Bearing
• Type: Mounted Ball Bearing
• Shaft Dia: 2 3/16" inch
• Bolt Size: 3/4" inch
• Bearing No: UCX11-35

UCPX11-35 FYH Bearing Pillow Block Bearing Cylindrical bore (with set screws) 2 3/16" Inner Diameter Bearing This is the most common type of mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Mounted units with cast steel housings are also available in this series, and are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately. * Item: UCPX11-35 Bearing * Type: Mounted Ball Bearing * Shaft Dia: 2 3/16" inch * Bolt Size: 3/4" inch * Bearing No: UCX11-35 * Basic Load (Cr): 52.4 KN * Basic Load (Cor): 36.2 KN * Quantity: One Bearing Dimensions (inches) d H L A J N N1 H1 H2 L1 B S 2-3/16" 2-3/4" 10-1/4" 3-1/8" 7-1/4" 31/32" 1-13/32" 1-3/32" 5-15/32" 3-9/32" 2-9/16" 1"

Check price now
